Virtual Capture Workflow Models allows the administrator to configure the order in which screens appear in Virtual Capture applications. A Virtual Capture Workflow Models serves as the basis for the information displayed in a Virtual Capture application.

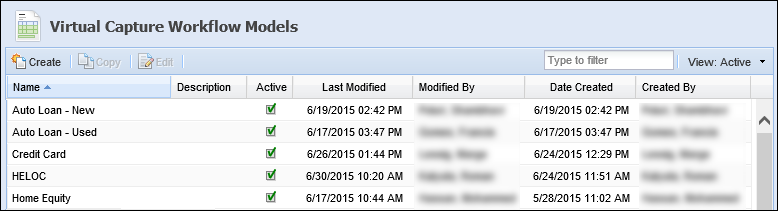

The Virtual Capture Workflow Models page can be accessed from System Management > Origination > Virtual Capture > Virtual Capture Workflow Models and provides a complete list of all workflow models used within Virtual Capture. From this page, administrators are provided with the functionality to configure workflow models that efficiently organize and customize an institution's application process.

The Virtual Capture Workflow Models page displays information about each workflow model within the following columns:

Column Name	Description
Name	Displays the name of the workflow model.
Description	If provided, displays a description of the workflow model.
Active	Displays a  if the workflow model is active.
Last Modified	Denotes when the last modification was made.
Modified By	Denotes who made the last modification.
Date Created	Denotes when the workflow model was created.
Created By	Denotes who created the workflow model.

The Virtual Capture Workflow Models topic includes the following attributes and instructions to assist administrators with creating, copying, and editing Virtual Capture Workflow Models:

• Workflow Model Attributes
  • General
  • Workflow
• Creating Workflow Models
• Copying Workflow Models
• Editing Workflow Models

Virtual Capture Workflow Model Attributes

All Virtual Capture Workflow Models share common attributes that are defined when creating, copying, or editing a model.

General

General attributes include basic information pertaining to the Virtual Capture Workflow Model.

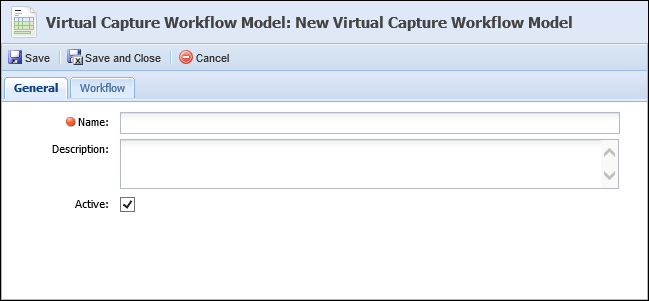

The following General attributes are defined on the General tab:

Field	Description
Name	Enter a unique name for the Virtual Capture Workflow Model. This is a required field.
Description	Enter a description that identifies the purpose of the Virtual Capture Workflow Model.
Active	Select the Active check box to make the Virtual Capture Workflow Model available to be assigned to application types available in Virtual Capture. The Lifecycle Management Suite does not prevent users from deactivating an assigned Virtual Capture Workflow Model. Prior to deactivating a Virtual Capture Workflow Model, verify that it is not assigned to an Application Type within the Product Selection tab on the Virtual Capture Settings page.

Back to top ^

Workflow

Workflow attributes include the order in which the application is to be completed and is built according to the various stages of the application life cycle.

Workflow attributes are assigned within the Workflow tab. This tab displays a list of the screens assigned to the Origination, Underwriting, Approval, and/or Decline categories of an application and provides administrators with the ability to add and remove the screens that are presented within each stage of the workflow.

Back to top ^

Virtual Capture Workflow Actions

Virtual Capture Workflow Model actions includes the following topics:

• Creating Workflow Models
• Copying Workflow Models
• Editing Workflow Models

Creating Virtual Capture Workflow Models

The Create function enables administrators to define the logic and structure of a Virtual Capture Workflow Model. This function provides the ability to configure and customize the application process to meet an institution’s business needs.

To create a workflow model, navigate to System Management > Origination > Virtual Capture > Virtual Capture Workflow Model and click .

Within the Virtual Capture Workflow Model configuration window:

• Define the General workflow model attributes.

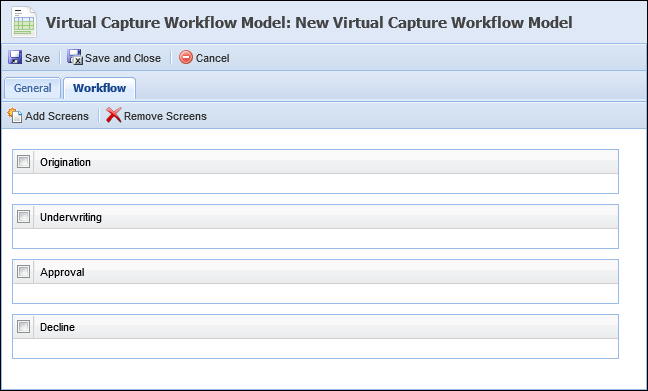

• Once all General attributes are defined, navigate to the Workflow tab to configure Workflow attributes and perform one of the following actions:
  • Add Screens
  • Remove Screens

Add Screens

• To begin configuring the application’s Workflow, click .



• The Select Screens window appears.


  The Select Screens window lists all Application and Account Product screens configured in System Management >Origination > Virtual Capture > Screens.




• Select the desired Category from the Category drop-down list. This drop-down defaults to Origination, but provides the option to select the Approval, Decline, or Underwriting stages.
• After a category has been defined, select the check box next to a screen to assign it to that stage of the workflow.

  For user convenience, a Filter appears in the top-right corner of the Select Screens window. Enter keywords to narrow down the available choices within the Screen list. Additionally, users are able to sort the list alphabetically by clicking the column header.

• Click Add to assign the screen(s) to the selected Workflow category.
• If desired, once all screens have been added to the first category, repeat this process for any remaining categories.
• Once all screens have been added to the appropriate Workflow categories, click Close to exit the Select Screen window and return to the Workflow tab.

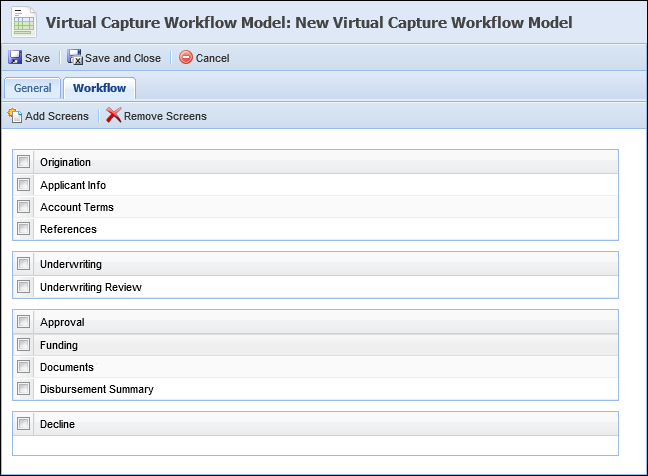

• The order in which the screens appear under each category in the Workflow tab determines their order of appearance in the application workflow. To change the order in which the screens appear, drag and drop the screens into the proper sequence.

  When a new application is created, the first screen of the Workflow displays as the default screen.

• Verify that all desired screens have been added to the appropriate Workflow category. If additional screens are required, reselect  and repeat the addition process.

Back to Workflow Actions ^

Back to top ^

Remove Screens

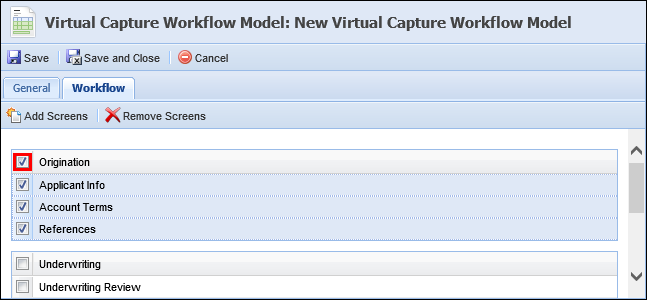

• To remove a screen from a Workflow category, select the check box that corresponds with the screen to be removed and click .
• To clear an entire Category, select the check box that corresponds with the category to be cleared and click .



  Selecting the check box within a category heading automatically selects all screens under the category as shown in the above example.

Back to Workflow Actions ^

Back to top ^

Once all tabs are complete, review each tab for accuracy. After all updates have been made to the workflow model, click .

The newly created Virtual Capture Workflow Model may be assigned to an Application Type within the Product Selection tab of the Virtual Capture Settings page.

Back to top ^

Copying Workflow Models

The Copy function enables administrators to duplicate the logic and structure of an existing Virtual Capture Workflow Model. The existing workflow model can be used as the base for creating a new workflow model. Copying a workflow model provides administrators with the ability to add, modify, or delete screens, as well as workflow and validation logic. Administrators are then able to save it with a different name in order to create a new workflow model.

• To copy an existing Virtual Capture Workflow Model, select the desired workflow model within the grid on the Virtual Capture Workflow Models page and click .
• Once the Virtual Capture Workflow Model's name has been changed and logic updated, click  to retain all changes and finalize the creation of a new Virtual Capture Workflow Model.

Back to Workflow Actions ^

Back to top ^

Editing Workflow Models

The Edit function enables administrators to revisit an existing Virtual Capture Workflow Model and modify the existing logic to enhance usability.

• To edit an existing Virtual Capture Workflow Model, double-click on the desired workflow model within the grid on the Virtual Capture Workflow Models page or select the desired model and click .
• Once the logic has been updated, click  to finalize the Virtual Capture Workflow Model's modifications.

Back to Workflow Actions ^

Back to top ^





---
