Administrator Guide > Virtual Capture Overview |
The Virtual Capture Overview topic provides an outline of the configurable areas within the Virtual Capture web application, as well as an overview of the virtual application process.
Many areas of Virtual Capture can be configured by administrators to display institution-specific information and preferences, including the text within the navigation bar and site footer, the details and presentation of the Product Selection page, and the screens presented to applicants during the virtual application process. This section serves as a guide to where configurations are made in the Lifecycle Management Suite for the Navigation Bar and Site Footer, the Product Selection page, and Virtual Capture screens.

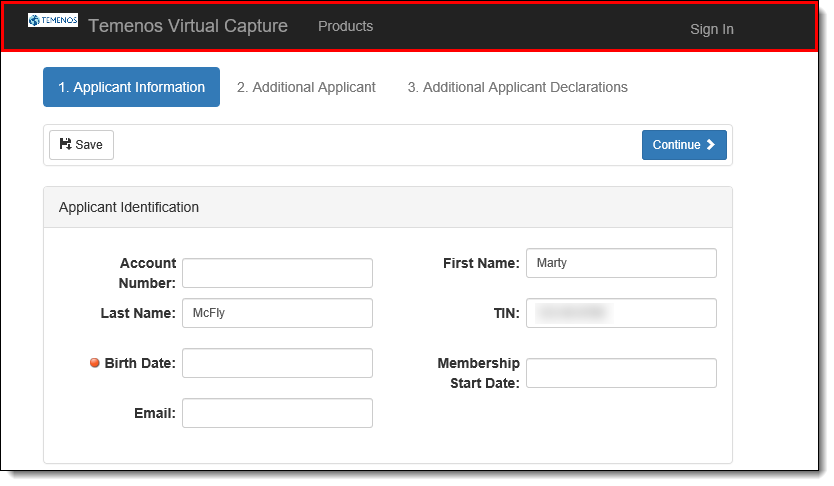

The navigation bar displays along the top of the Virtual Capture web application to provide applicants with a link to the Product Selection page, and access to
a list of applications and/or the online profile management screen throughout the application process.
This navigation bar includes the following components:
Component | Description | ||||||||||||||
Company Logo and Name |
The Company Name and Logo that appear in the navigation bar are defined within the Site Header section of the General tab in System Management > Origination > Virtual Capture > Virtual Capture Settings.
|
||||||||||||||
Products Link |
The Products link enables applicants to navigate directly to the Product Selection page during the application process. When clicked, the applicant is directed to the first sub-category under the first category listed in the page. By default, the title of this link is Products, but can be modified within a Custom Settings file for the institution.
|
||||||||||||||
Sign In/Applicant's Name |
The Sign In link allows an applicant to log on to an existing online profile. Clicking this link populates the Sign In panel for an applicant to enter the email address and password required to access his or her online profile.
The Sign In link only appears in the Navigation Bar when the applicant has not accessed Virtual Capture through an institution's website. After an applicant logs on to an online profile or begins the Guest application process, the Sign In link is replaced by the name of the applicant or vendor user currently logged on to Virtual Capture as shown below: When the name drop-down is clicked, the following options are displayed: When List Applications is selected, a list of all applications on which the applicant is Primary, or all applications associated to the vendor, is displayed. Clicking the
If desired, system administrators can configure text to appear to the right of the Applications grid within the Application Listing Text parameter in the General tab of Virtual Capture Settings (System Management > Origination > Virtual Capture > Virtual Capture Settings).
When Manage Profile is selected, the applicants is presented with the Manage Profile screen to update the details of his or her online profile, such as email address, password, and/or security questions and answers.
When Sign Out is selected, the applicant's session is ended, and he or she is signed out of the Virtual Capture application.
|
![]() |

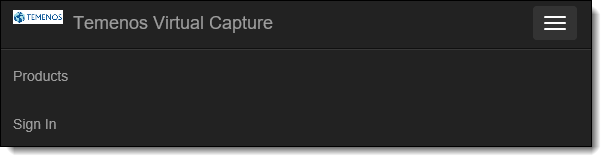

When using a small device, the navigation bar appears as shown in the following example: Clicking |

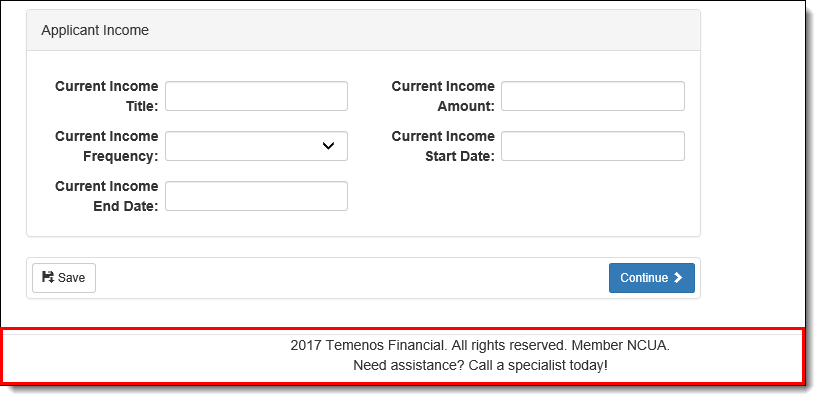

The Site Footer appears along the bottom of the Virtual Capture web application to display institution-specific information throughout the application process.

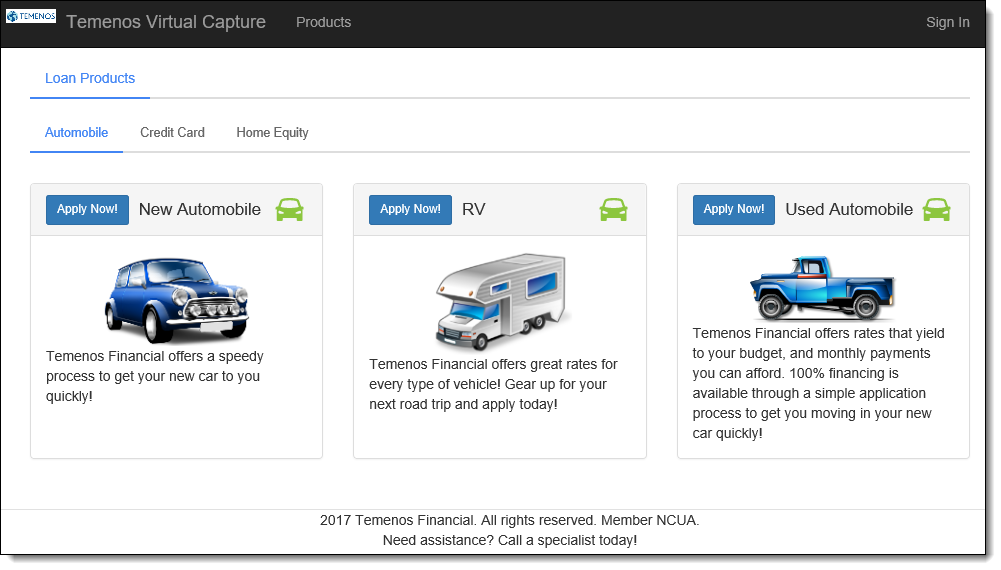

The Product Selection page provides applicants with the ability to select the product(s) for which they want to apply. System administrators are able to configure many details of the Product Selection page, including how the page renders for the device used to access Virtual Capture. This section provides an overview of the following information to assist system administrators is configuring the product selection process for their institution:

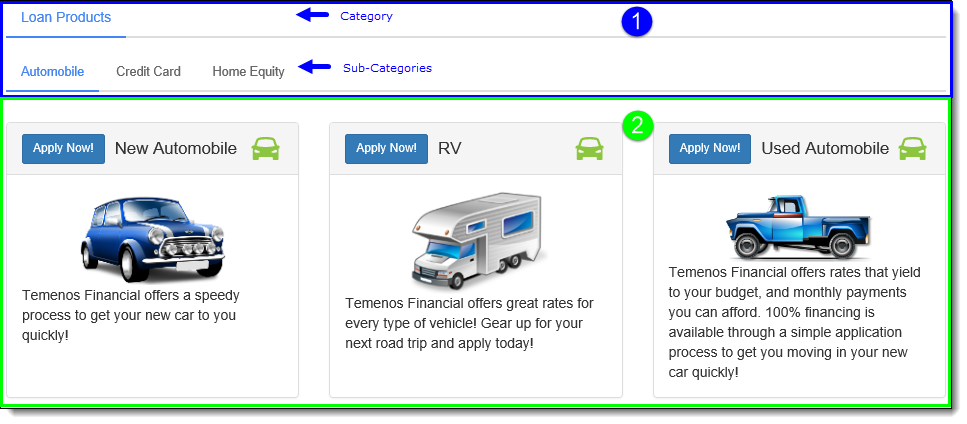

The Product Selection page includes the following configurable areas:
1- Product Categories/Sub-Categories
Categories provide a method of organizing groups of similar Virtual Capture products, while Sub-Categories allow administrators to further organize the Virtual Capture products under each Category, and can be used to identify the specific type of product to be added to the application. For example, Auto Loans. When an applicant selects a Category in the Product Selection page, he or she can then click a sub-category to access the products that are available to add to the application.

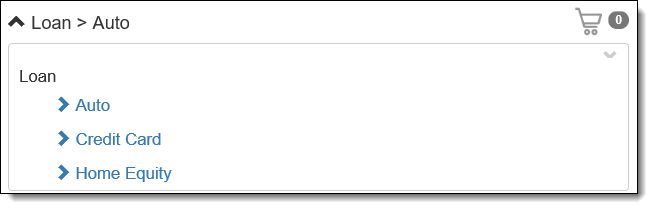

This section displays an alphabetical list of the categories and sub-categories assigned to the products configured in the Product Selection tab of Virtual Capture Settings (System Management > origination > Virtual Capture > Virtual Capture Settings).
![]() |
If all products are listed under the same sub-category, only the category is displayed in the Product Selection page. For more information on product categories and sub-categories, please see the General Product Attributes section of the Virtual Capture Settings topic in this guide. |
By default, when an applicant accesses Virtual Capture from an institution's website, he or she is navigated to the first Product Sub-Category that is listed under the first Category in the Product Selection page.
![]() |
Institutions are able to customize their Virtual Capture URL to automatically direct applicants to a specific product when Virtual Capture is accessed from their website. When this occurs, applicants are automatically navigated to the category and/or sub-category specified in the URL upon accessing Virtual Capture. For more information, please see the Getting Started with Virtual Capture topic in this guide. |

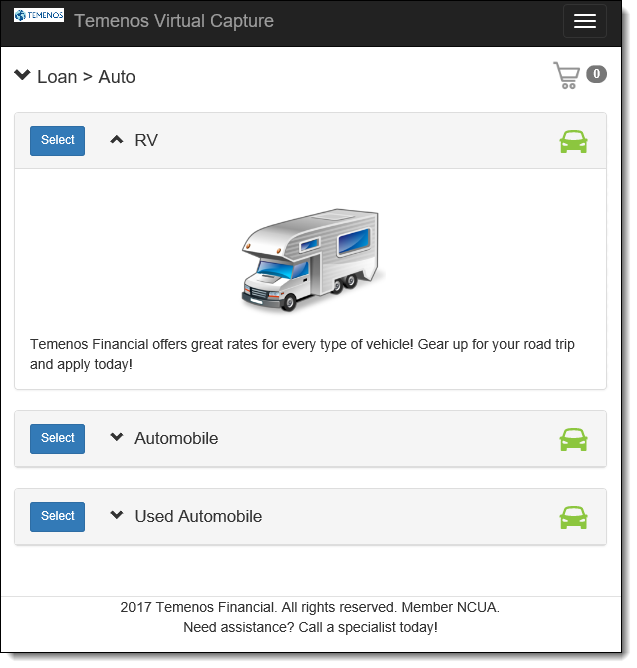

Once a category and sub-category are selected within the top of the Product Selection page, applicants are presented with a product card for each active product configured for the sub-category in the Product Selection tab of Virtual Capture Settings.
The contents in each Product Card, and layout of the Product Card section, is determined by the parameters that are set for the large or small device used to access Virtual Capture.
![]() |
Please see the Device Parameters section in this topic for more information on the configurable settings for large and small devices. |
The order in which product cards are listed under the selected sub-category, and the content that appears in each product card, is determined by the following attributes set for the product in the Product Selection tab of Virtual Capture Settings:
Product Attribute | Description |
List Order | Determines the order in which product cards are listed in the Product Selection page. In the above example, New Automobile has a list order of 1, while RV and Used Automobile have a list order of 2. |
Display Name | Determines the name that appears for the product. For example, New Automobile. |
Small Image |
Determines the image displayed in the header of the product card, when the Display Header and Display Header Image parameters are enabled for the device. For example: |
Large Image |
Determines the large image displayed in the body of the product card, when the Display Card Image parameter is enabled for the device. For example:
|
Sales Script | Determines the informational text that appears under the large image in the body of the product card. |
The text that is displayed within the button on each product card can also be determined by the system administrator. The following table provides an overview of the button configurations that are available for the Product Selection page:
Button | Available Configuration | ||
![]() |
This button appears in the product card for a loan product. If desired, the button text can be updated within a Custom Settings file for the institution.
|
![]() |
To learn more about the behavior of the above buttons during the application process, please see Product Selection within the Virtual Application Process Overview section of this topic. |
Since Virtual Capture is a web application that can be accessed from various devices, system administrators are provided with the ability to configure the look and feel of the Product Selection page when an applicant uses a large device, such as a tablet or laptop, or a small device, like a smart-phone or mini tablet.
The parameters within the Device Parameters tab of Virtual Capture Settings allow administrators to control how the Product Selection page is presented for each type of device an applicant may use to access Virtual Capture.
System administrators are provided with the ability to determine the following settings for each device in the Device Parameters tab:
![]() |
For more information on the above parameters, please see the Device Parameters section of the Virtual Capture Settings topic in this guide. |

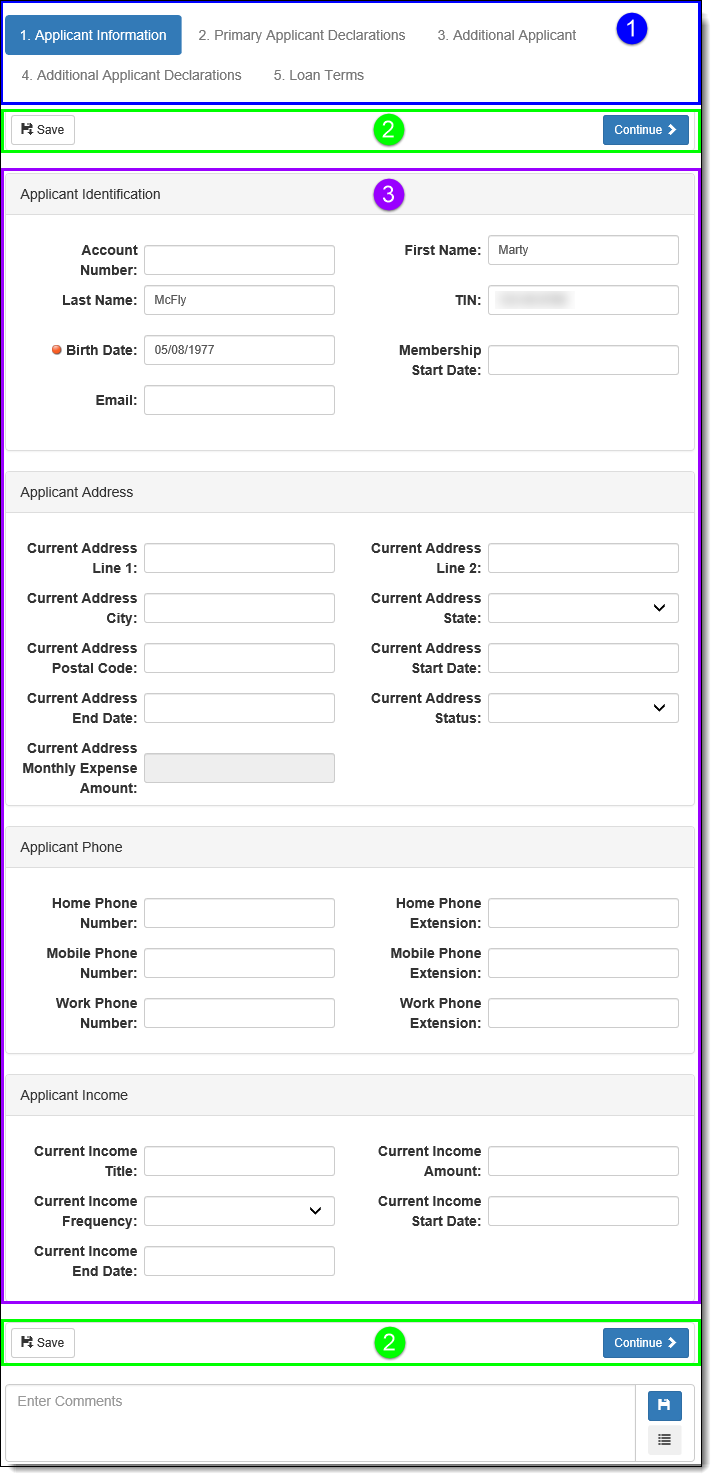

Using the Virtual Capture Screens and Workflow Models functionality, system administrators are able to determine the information that appears within each screen in Virtual Capture, and the order in which each screen is presented in the application. The following sections display in each screen during the virtual application process:
The Screen Links section of the Virtual Capture web application displays the name of each screen configured in the Virtual Capture Workflow Model assigned to the product. Each screen is numbered according to the order in which they are presented within the workflow model.
![]() |
Virtual Capture Workflow Models are assigned to loan application types within the Product Selection tab of the Virtual Capture Settings page. |
The name of the screen in context is shaded in blue. Once the screen is completed, and clicked, the next screen in the workflow model is presented and shaded in blue. The previous screen appears as a blue hyperlink that, when clicked, navigates the applicant back to that screen for editing. Screens in the workflow that have not been accessed by clicking
appear in gray text, and cannot be opened by clicking on the screen name.
![]() |

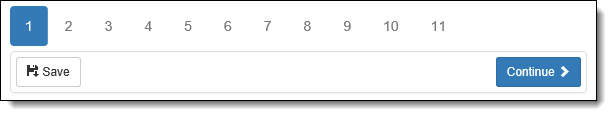

When Virtual Capture is accessed using a small device, the same behavior occurs within the Screen Links section, but only the number of the screen is displayed as shown in the below example: |
The Buttons section of the Virtual Capture web application displays a combination of the following buttons, depending on the screen in context:
Button | Description | ||||
![]() |
Click this button to save the current screen, and navigate to the previous screen in the application.
|
||||
![]() |
Click this button to save the information entered within the current screen. | ||||
![]() |
This button only appears in Guest applications. Click this button to exit the Guest application process and create an online profile.
|
||||
![]() |
Click this button to save the current screen and navigate to the next incomplete screen in the application.
|
||||
![]() |
Click this button to save the current screen and submit the application to the financial institution. This button is only displayed on the final screen in the application workflow category.
|
||||
![]() |
Click this button to add an applicant, collateral, or reference to an application. Once this button is clicked, fields display to allow information to be entered for the applicant, collateral, or reference.
|
||||
![]() |
Click this button to remove an applicant, collateral, or reference from an application. Once this button is clicked, a confirmation window appears to confirm that the applicant, collateral, or reference should be removed from the application.
|
When an applicant accesses Virtual Capture from an institution's website, he or she is navigated to the Product Selection page. By default, all active products that are assigned to the first Product Sub-Category listed under the first Category are displayed.
![]() |
The product category and sub-category selected upon accessing Virtual Capture is determined by the Virtual Capture URL implemented for the institution. For more information, please see the Getting Started with Virtual Capture topic in this guide. |
From the Product Selection page, applicants are able to sign in to an online profile from the top navigation bar, or select the desired product and initiate the login process.
If the applicant has not clicked Sign In to access an online profile, he or she must select the desired product from the Product Selection page. The product category and sub-category links at the top of the page allow applicants to easily navigate between different sub-sets of products to view all of the products that the institution has to offer.
![]() |
While the product category and sub-category section is available for all devices, the appearance and behavior of the section differs in large and small devices. When an applicant accesses Virtual Capture on a large device, the product category and sub-category section is displayed as links along the top of the Product Selection page, as shown in the above example. The category and sub-category in context is highlighted blue, such as Loan Products, Automobile. Clicking a gray category or sub-category link changes the products that appear on the page. When an applicant accesses Virtual Capture on a small device, the product category and sub-category section is displayed as expandable/collapsible drop-downs. The drop-down for the category and sub-category in context is expanded in the top of the Product Selection page to display the available products for the sub-category, such as Loan > Auto in the below example: Clicking the drop-down for the category and sub-category in context expands a list of all categories and sub-categories that are available to select from in Virtual Capture. For example, clicking Loan > Auto expands the following list: The available sub-categories are listed in blue under each category. Clicking a sub-category collapses the list, and expands the drop-down to display the products assigned to that sub-category within the Product Selection page. |
Once the desired product is selected, clicking within the product card initializes the login process.
There are multiple login methods available for Virtual Capture to allow applicants to access the Virtual Capture application, and initiate the application process. This section provides an overview of the following login methods:
![]() |
If an open session of Virtual Capture has been idle for 15 minutes, the applicant is automatically signed out and redirected to the Online Profile login page. |
When the Single Sign On method is implemented for an institution, applicants are provided with seamless navigation between the institution's website and the Virtual Capture application.
Once the desired product has been selected by the applicant, clicking within the product card initializes the application process.
![]() |
For more information on the Single Sign On process, please see the Virtual Capture Sign On Specifications document available on the Temenos Client Portal. |
The Online Profile functionality allows new account holders, and applicants who do not log in through their financial institution's web site, to establish a secure online profile where they can safely create and manage applications in Virtual Capture. The Sign In panel enables applicants to access their secure online profile to create a new application, or view/update an existing application. If an applicant has not created an online profile, this panel also provides the ability to easily create one by clicking the Create an online profile link. The Sign In panel displays upon clicking Sign In in the Navigation Bar, or by selecting a product and clicking in the product card to populate the Login screen.
![]() |
For information on creating and managing an online profile, please see the Online Profile Management topic in this guide. |
To access an online profile, the applicant must enter his or her email address and password within the corresponding panel fields and click .
![]() |
The value entered for the password is case sensitive and must be an exact match to the password provided in the Online Profile Management screen. |
![]() |
If the email address and/or password entered does not match the value provided in the Online Profile Management screen, an error message is presented to the applicant upon clicking |
Upon clicking , one of the following screens may appear:

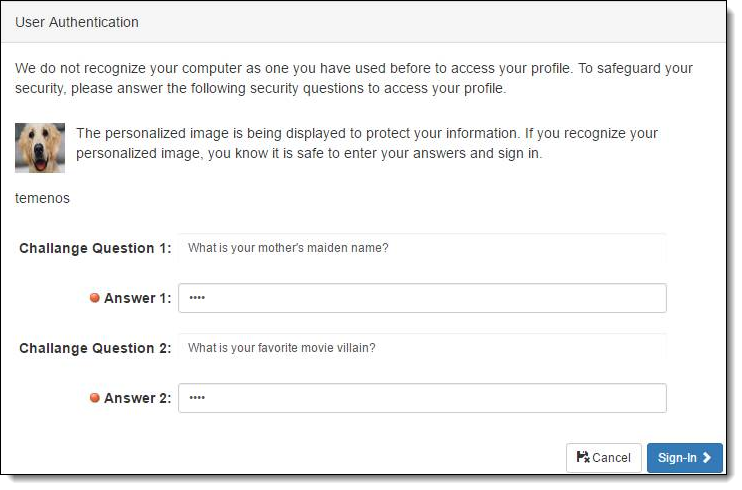

When an applicant accesses his or her online profile from an unregistered device, the User Authentication screen appears to validate the applicant's identity. This screen includes the Security Image and Welcome Phrase configured for the online profile as well as two Challenge questions that must be answered to proceed with the login process. The questions that appear are randomly populated from the list of five questions configured for the online profile.
To continue with the login process, the applicant must enter a response in each Answer field and click .
![]() |
The values within each Answer field are masked to ensure the security of the information entered. The responses are not case sensitive, but must match the answers provided in the Online Profile Management screen. If either of the questions are answered incorrectly, two additional Challenge questions are presented to the applicant upon clicking ![]() |
Once both Challenge questions have been answered correctly, the applicant is navigated to the Start New Application screen.

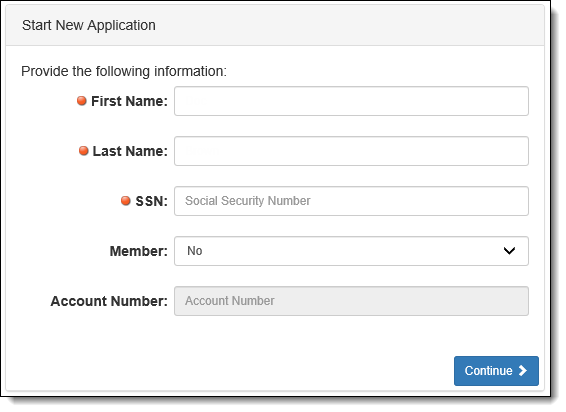

The Start New Application screen provides applicants with the ability to enter the information required to begin the application process, such as their SSN and/or Account Number. Within this screen, the First Name and Last Name fields pre-populate with the first and last name provided for the online profile.
To complete the login process, the applicant must enter an SSN and select Yes or No from the Member drop-down to identify his or her account holder status. If Yes is selected, the Account Number field becomes enabled and is required to complete the screen.
![]() |
System administrators are provided with the ability to remove the Account Number field from the Start New Application screen by enabling the Hide Account Number parameter within the Login Tab in Virtual Capture Settings. When this parameter is enabled, the Account Number field does not appear in this screen regardless of an applicant's account holder status. For more information on this functionality, please see the Login Tab section of the Virtual Capture Settings topic. |
Once all information is complete, clicking initializes the application process.
![]() |
For information on the process that occurs after an application is created, please see the Virtual Application Process Overview section in this topic. |
In order to access their online profile, applicants must enter the email address and password they provided in the Online Profile Management screen. In the event that an applicant does not remember the password for his or her online profile, a Forgot Password? link appears under the Sign In panel to allow the applicant to easily reset his or her password.

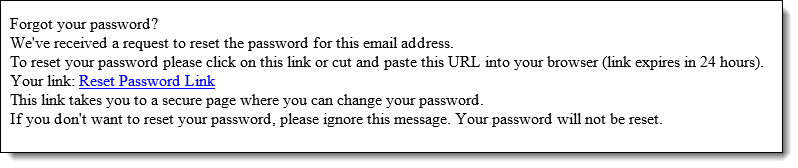

Applicants must take the following steps to reset their password:
![]() |
In order to protect users from a brute force attack, the same message displays to the user if the email address that was entered does not match a record within the database |
![]() |
The Reset Password link expires in 24 hours, if not used by the applicant, or expires immediately after an applicant successfully changes his or her password. |
![]() |

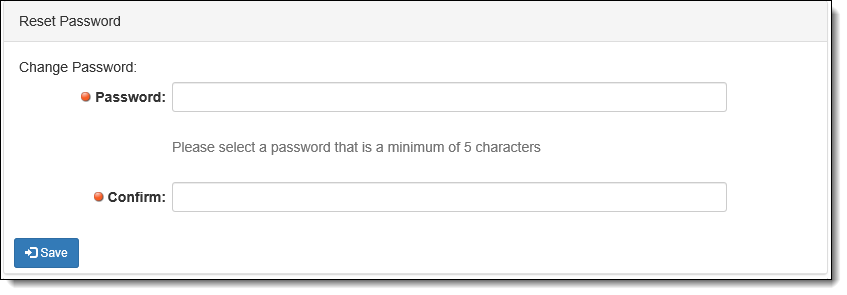

The password entered in this field must meet the requirements set by the system administrator in the Security tab of Administrative Settings (System Management > Administrative Settings) or a validation error is received upon clicking ![]() |
If a correct email address and/or password is not entered within the Sign In panel after three attempts, the applicant's online profile is automatically locked for 20 minutes. When this occurs, a message including a Forgot Password? link displays to inform the applicant that his or her online profile has been locked and provide the ability to unlock the profile before the 20 minutes expires. If desired, the applicant can click Forgot Password? to update his or her password and unlock the online profile following the above steps.
The Guest Login panel provides applicants with the ability to log on to Virtual Capture without creating an online profile.
![]() |
The title that displays in the header of this panel may differ for each institution, as it displays the value configured for the Panel Title field in the Guest Login section of the Login tab in Virtual Capture Settings. |

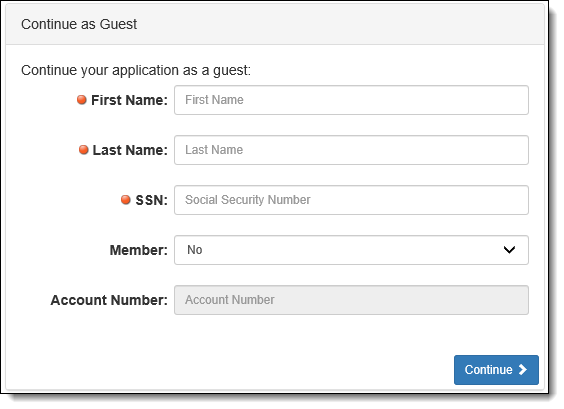

To continue as a Guest, the applicant must enter information into the required First Name, Last Name, and SSN fields in the panel.
Within the Member drop-down, the applicant can select Yes to identify that he or she is a current account holder with the financial institution or No to identify that he or she is not a current account holder. If Yes is selected, the Account Number field becomes enabled and is required to complete the screen.
![]() |
System administrators are provided with the ability to remove the Account Number field from the Continue as Guest panel by enabling the Hide Account Number parameter within the Login Tab in Virtual Capture Settings. When this parameter is enabled, the Account Number field does not appear in the Continue as Guest panel regardless of an applicant's account holder status. For more information on this functionality, please see the Login Tab section of the Virtual Capture Settings topic. |
Once all information is entered in the Continue as Guest panel, clicking initializes the application process.
![]() |
Upon clicking ![]() |
![]() |
For information on the process that occurs after an application is created, please see the Virtual Application Process Overview section in this topic. |
In addition to supporting the application process for individual applicants, the Lifecycle Management Suite provides vendors with the ability to access the Virtual Capture module to create, submit, and view applications on behalf of their customers.
![]() |
The Vendor Portal (Merchant Lending) is only available with the Loan Origination module and requires a second instance and URL configuration in Server Manager. Please see the Getting Started with Virtual Capture topic of this guide for more information. |

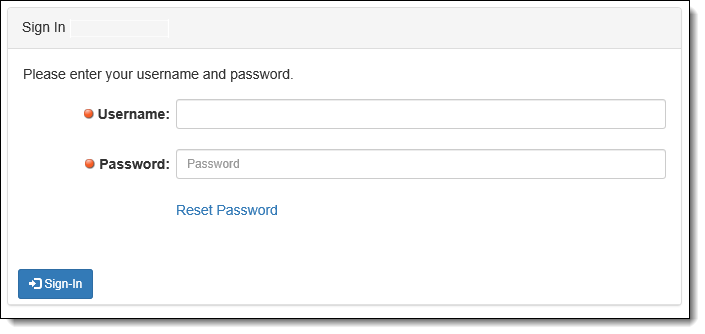

The Vendor Login panel provides individual vendor users with the ability to log on to Virtual Capture with the username and password defined by a system administrator in System Management > Origination > Loan > Vendor Management.
Once the Username and Password fields are complete, click to initialize the application process.
If the vendor user has forgotten their password, clicking the Reset Password link on the Vendor Login panel displays the Reset Password panel. Within the panel, enter the username and old password, and then enter a new password within the New Password and Confirm Password fields.
![]() |

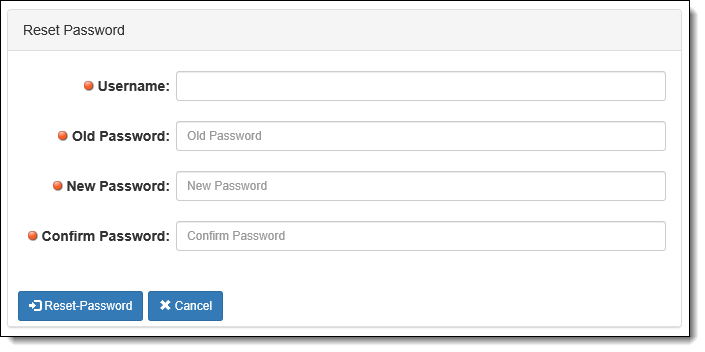

If the "Force Password Change on Next Login" option is selected for the user within the Contacts tab in System Management > Origination > Loan > Vendor Management, the Reset Password panel is displayed upon navigating to the Vendor Portal, instead of the Vendor Login panel. |
When finished entering the password information, click . Upon successful reset, the vendor user is returned to the Vendor Login panel to login using their username and new password information.
Login Method OverviewTo protect applicant security, features available within Virtual Capture are enabled/disabled based on the login method. The following matrix provides an overview of the features enabled by each Virtual Capture login method. |
||||||
Method | Feature Supported? | |||||
Create Applications | Application Data Populates from Core | Application Data Populates from Previous Apps | List Applications | Edit/Open Applications | ||
Single Sign On | ![]() |
![]() |
![]() |
![]() |
![]() |
|
Online Profile | ![]() |
![]() |
![]() |
|||
Guest Login | ![]() |
|||||
Vendor Login | ![]() |
![]() |
![]() |
![]() |
||
Once the applicant or vendor has been successfully authenticated and logged on to Virtual Capture, the application process begins.
![]() |
If the applicant selects a loan product, the application is created based on the associated Loan Application Type. |
The screen presented to the applicant depends on the login method used to initialize the application process. Reference the table below for an overview of the screen presented with each login method:
Login Method | Screen Presented to Applicant | ||||
Single Sign On |
After clicking |
||||
Online Profile |
When an online profile is first created:
When an online profile is created during the Guest application process:

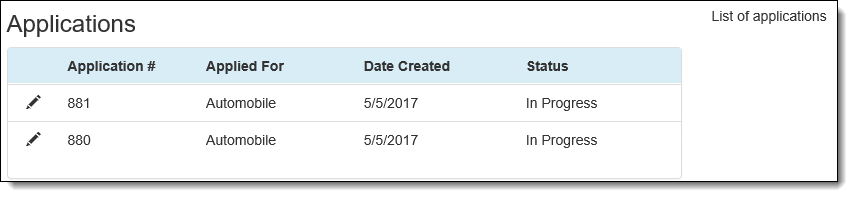

When the applicant logs on to an existing online profile from the Sign In panel:
|
||||
Guest Application | After clicking ![]() |
||||
Vendor Login |
After clicking Clicking
|
![]() |
Security measures are in place within Virtual Capture to prevent an applicant from navigating to an application that is not their own as well as ensure the safety of idle applications. Reference the Applicant Security topic below for an overview of the security methods that occur during the virtual application process:
The following security methods occur during the virtual application process regardless of the applicant's login method: Verification of Application IDThe Application ID of the application in context is tracked and a unique Owner ID is displayed within the Virtual Capture URL. The value of the Application ID is validated each time one of the following actions is performed during the application process:
If an applicant tries to navigate to another application by changing the Owner ID, the applicant is automatically logged out of the application and redirected to the Product Selection screen. A message displays on the screen to inform the applicant that he or she is being logged out for security purposes. Verification of TINThe TIN for the logged-in user is compared to the TIN of the primary applicant on the application, and, if they do not match, the applicant is redirected to an error page.
Idle ApplicationsThe following security measures are in place to ensure the safety of an idle application:
|
![]() |
System administrators can configure the Search Core for Applicant action in System Management > Origination > Event Processing to search the financial institution's core for existing records for the applicant, if the applicant has selected No from the Member drop-down on the Continue as Guest panel. For more information on the Search Core for Applicant action, please see the Event Processing topic of the Lifecycle Management Suite Administrator Guide. |
During the virtual application process, the applicant must enter information within each screen, and click until all screens are complete. If necessary, the applicant can click
to return to the earlier screen in the application.
![]() |
Clicking ![]() ![]() |
Once the final screen of the Origination workflow category is complete, clicking sends the application to the financial institution for review and decisioning.
Once decisioned and in the Approval workflow category, clicking sends the application to the financial institution for disbursement.
![]() |
Prior to using Virtual Capture, a Default Values rule should be authored in System Management > Origination > Rules Management to set the IsAutoDisburse flag to false for applications created through Virtual Capture. Authoring this rule ensures the applicant is able to complete and review all information and confirmations prior to disbursement. |
![]() |
The ![]() |
Upon clicking to disburse the application, the Disbursement Confirmation Text configured within the General tab in Virtual Capture Settings is displayed for the applicant to confirm that he or she agrees with the terms and wants to proceed with the disbursement process. This text must be confirmed by the applicant in order to initiate the disbursement of the application.
![]() |
If any funding validation errors occur during disbursement, a "friendly" error message is displayed indicating the field(s) that must be corrected. The applicant can correct the issue(s) then re-attempt the disbursement process. |
Upon successful disbursement, the Disbursement Success Text configured in Virtual Capture Settings appears to signify the completion of the virtual application process.
When an application is created and presented to the applicant in Virtual Capture, the application is also able to be accessed within the Lifecycle Management Suite. The application is populated with the applicant's name, Account Number, and/or TIN. When an institution uses the Single Sign On method, and the applicant is a current account holder, if the "Copy Demographics for Account Holder" parameter is enabled in Virtual Capture Settings, the applicant's address, phone number, and income information are also pre-populated in the application.
![]() |
Demographics are not pre-populated within applications created through the Guest application process or Online Profile. |
![]() |
When an application is submitted from Virtual Capture, the Lifecycle Management Suite is unable to distinguish whether the application was initiated through a Web or mobile device. Therefore, the application source populates as Virtual Capture in the Lifecycle Management Suite. |
